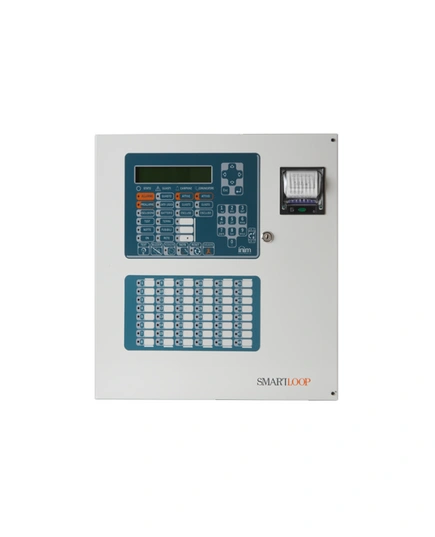

Fire control panel SmartLoopP

Analog-addressable fire control panel 2 loops expandable to 8 for 2080 expandable models 1 loop on non-expandable 1010 models All models in the SmartLoop series are EN54 Approved Multiprocessor hardware structure 32 bit main CPU OpenLoop Technology HorNet token- ring architecture Supports Emergency54 emergency configuration (CPU redundancy) Manages up to 30 panel token-ring network via the SmartLoop/NET board (accessory item) Easy remote access through SmartLAN board (accessory item) 2 or 4 wire loop connection Supports 240 devices per loop Manages up to 8 remote-control Repeater panels connected to the RS485 Interface Manages power stations on the RS485 BUS Manages a fire-suppression control panel on the RS485 BUS 3 general purpose NAC outputs 1 NAC Alarm output 1 NAC Trouble output 1 dry contact Alarm relay 1 dry contact Trouble relay RS485 BUS for Repeater panel connections (SmartLetUSee/LCD and SmartLetUSee/LED) Manages SmartLine020-4EXT and SmartLine036-4EXT fire extinguishing control panels via RS485 BUS Manages up to 14 remote-control Repeater panels on the RS485 BUS (maximum wire length between panels 1000m)
