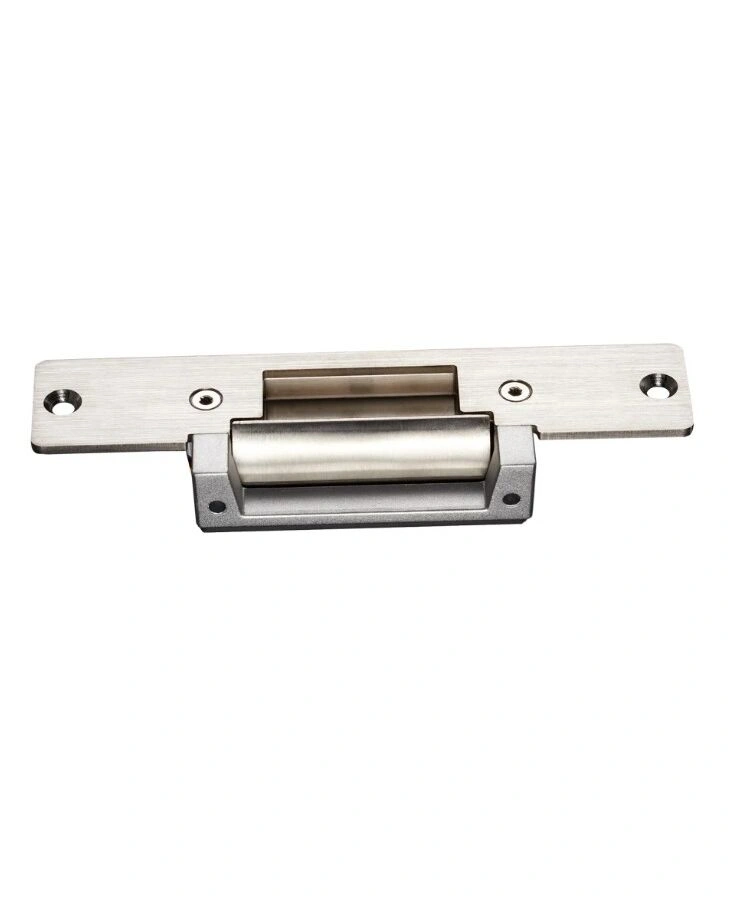

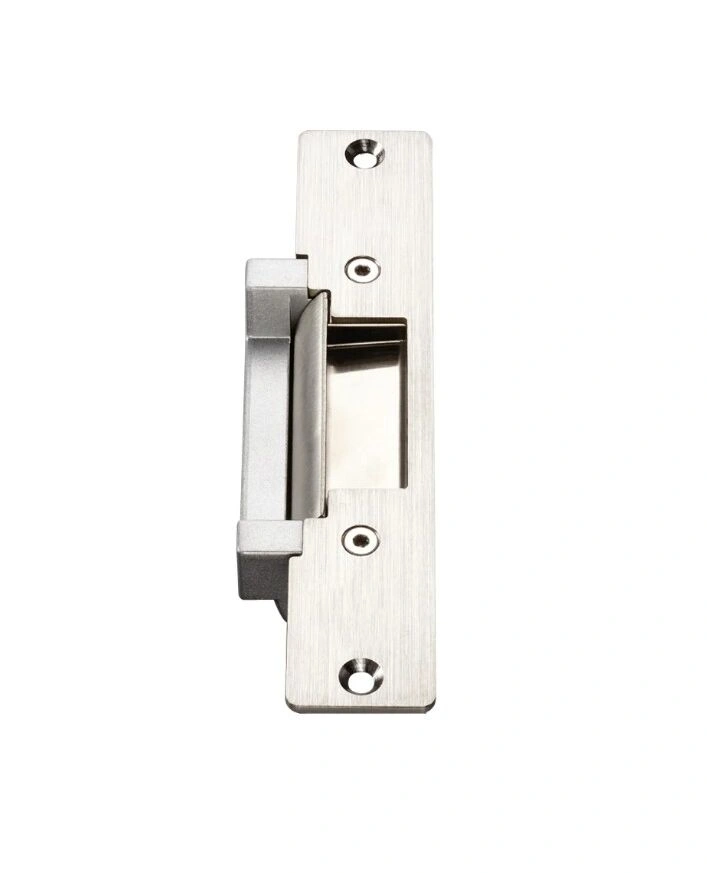

lock yli electronics YS-138LNO

Product Parameter Parameter Description Lock Size 165Lx43.7Wx35H(mm) Strike Structure Stainless Steel Holding Force 1000kg Voltage DC12V (Need Order DC24V) Current 12V/320mA(±10%);24V/160mA(±10%) Feature Fail Secure(YS-138LNO); FailSafe(YS-138LNC) Suitable For Wooden Door,Metal Door,PVC Door Surface Temperature Within + 20℃ Suitable Temperature -10~+55℃(14-131F) Operating Humidity 0～95%(non-condensing) Face plate Housing Painted Steel Function Built-out MOV Optional Accessories YS-305、YS-306 Weight 0.4kg Patent No. 2.0132E+11 Certificate MACE-EMC CE-LVDFCC-VOC REACHWEEE
