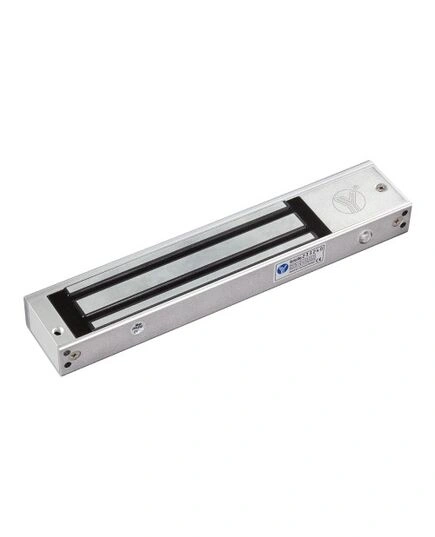

lock yli electronics YM-280NT(LED) DS

Size 250Lx49Wx28H(mm) Armature Plate Dimension 180Lx38.8Wx13.2H(mm) Holding Force 280kg(600Lbs) Input Voltage DC12V (Adjustable DC24V) Current 12V/500mA(±10%) ; 24V/250mA(±10%) LED Red shows locked ;Green shows unlocked Signal Output Lock signal(NO/NC/COM) Suitable Wooden door , Glass door ,Metal door , Fireproof door Surface Temp ≤+20℃ Operating Temp -20℃~+55℃ Humidity 0~90%(non-condensing) Weight 2.1KG Certificate MA CE-EMC CE-LVD FCC RoHS REACH WEEE
