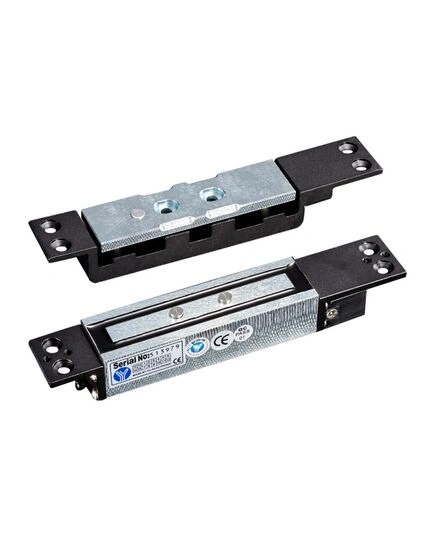

Electric magnetic lock YM-2400SL (07580)

Product Parameter Parameter Description Lock 182L X 30W X 25D(mm) Armature Plate 182L X 30W X 23.6D(mm) Power supply DC 12V (24V need order) Operation Current 850mA Holding Current 400mA Time Delay 0/5/10/15sec. Door status sensor NO/COM(0.1A@30VDC) Lock status sensor NC/NO/COM(0.1A@30VDC) Holding Force 2600Lbs(1200kg) Effective Distance(Max) 3mm LED Red shows locked; Green shows unlocked Weight 1.2kg
