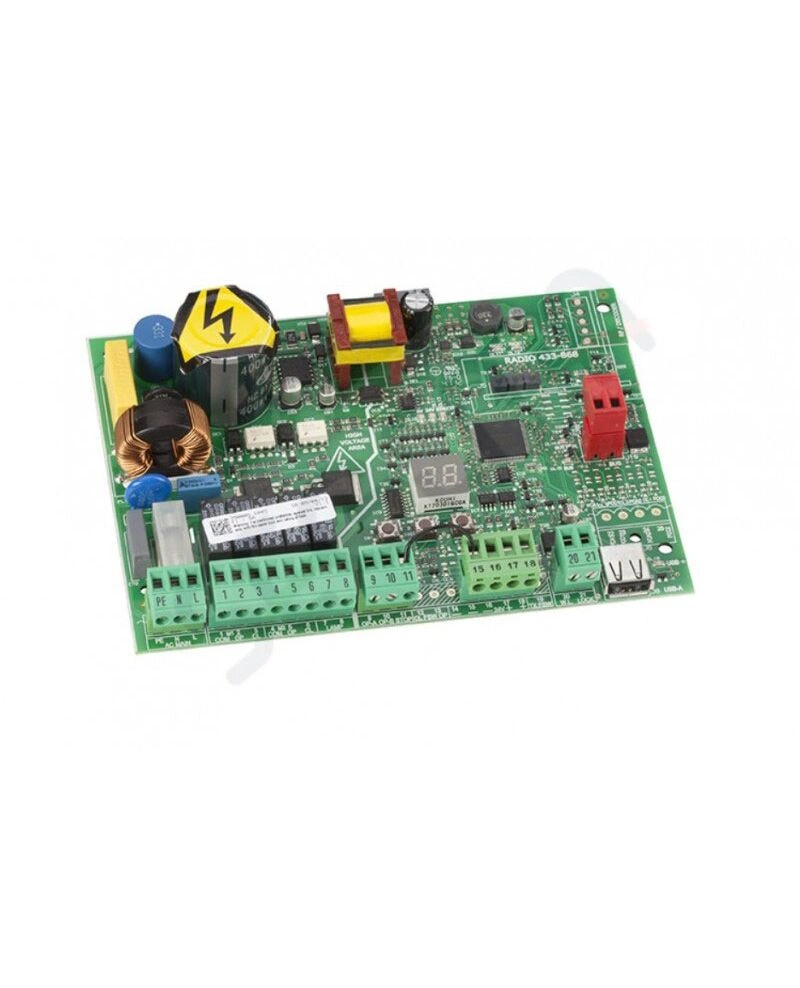

E045 ELECTRONIC BOARD 790005

Technical Specifications. Power supply voltage Power switching 230V~ (± 15%) 50(60) Hz. Max. power 4W Stand by W. Motor max power 800W Max. accessories load 500 mA 24V DC - 500 mA BUS 2easy. Max. electric lock load FAAC lock (12V~ - 24V DC). Programming LED display and buttons. Status signalling Display and LED. Terminal board inputs Open, Open pedestrian leaf, Stop (closed), BUS 2easy, Power + Earth. Terminal board outputs Lamp, Motors, Accessories power supply 24V2 DC, Indicator light 24V DC, Electric lock power supply 12V~. Rapid connector XF 433/868 module for OMNIDEC, USB DECODING. Protection Fuses 1 (2.5A). Operating ambient temperature -20°C ÷ +55°C.
